7th Street Two-Way Cycletrack Design Concepts

The following are design concepts for a two-way cycletrack on 7th Street from Izard to Battery (Figs. 1-8).  These details are not yet finalized, but posted to give the reader a more complete understanding of City staff's concept.

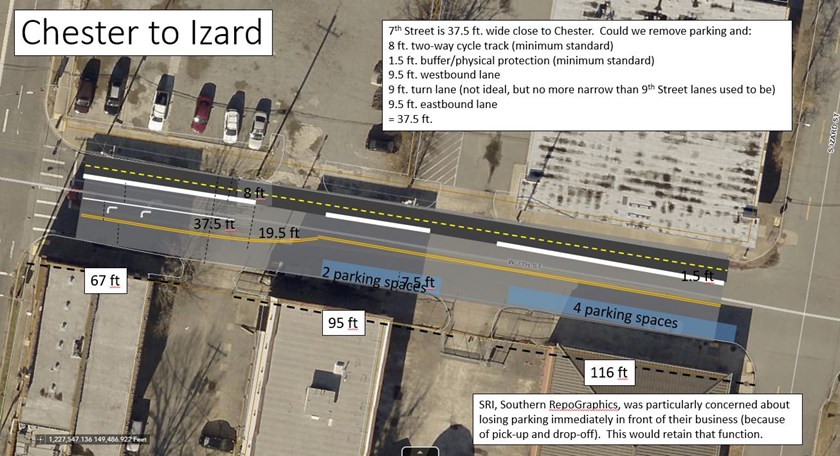

Figure 1.  Design concept for a two-way cycletrack from Chester to Izard.

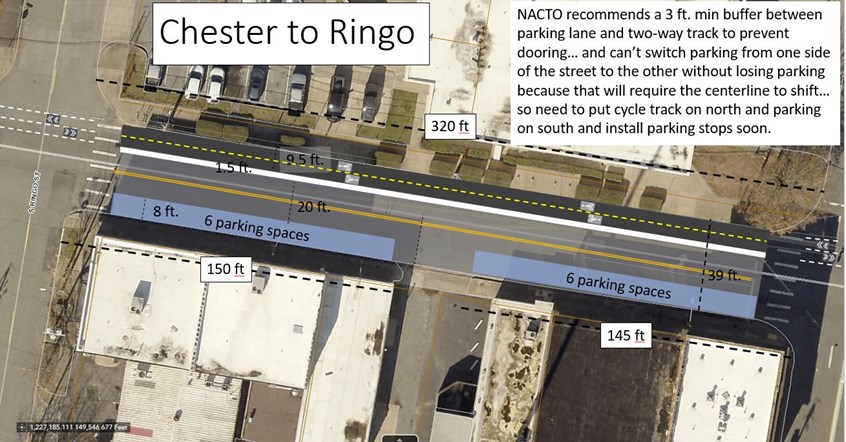

Figure 2.  Design concept of a two-way cycletrack from Chester to Ringo.

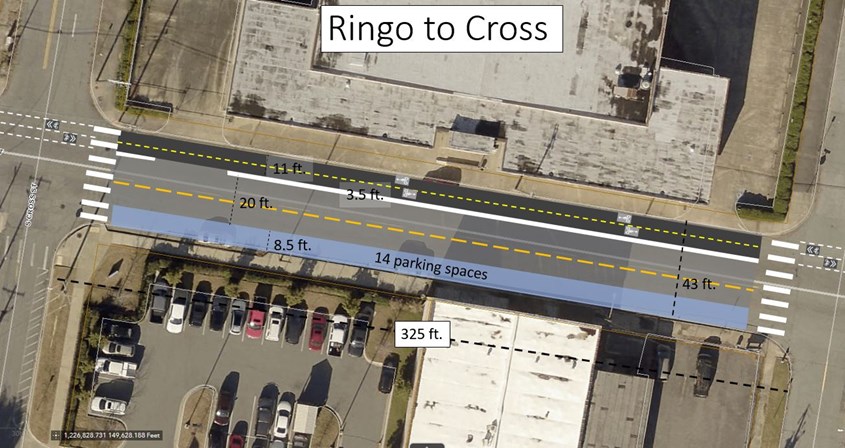

Figure 3.  Design concept of a two-way cycletrack from Ringo to Cross.

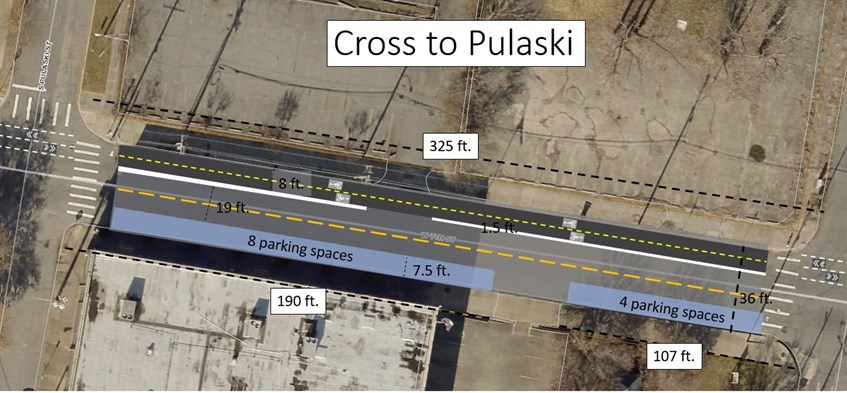

Figure 4.  Design concept of a two-way cycletrack from Cross to Pulaski.

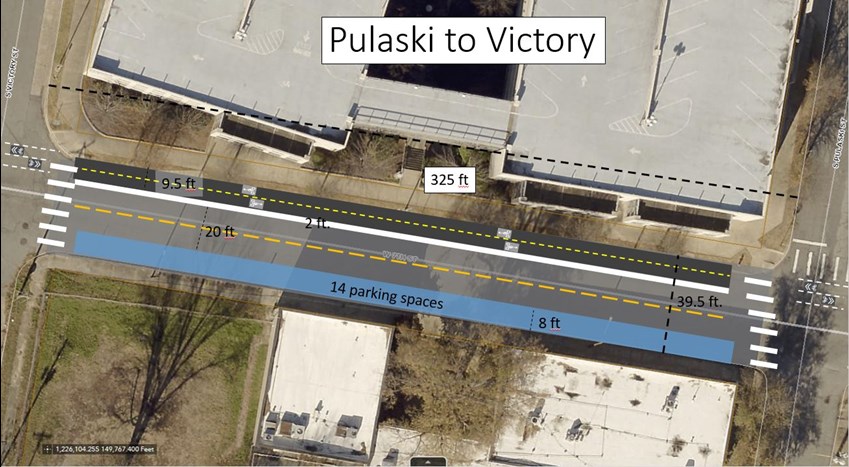

Figure 5.  Design concept of a two-way cycletrack from Pulaski to Victory.

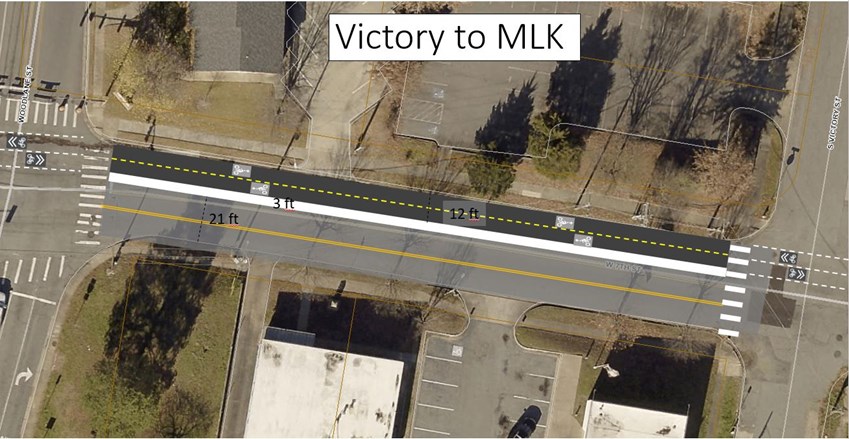

Figure 6.  Design concept for a cycletrack from Victory to MLK.  There is enough room to redesign this to include a left turn lane onto MLK (like Fig. 1) if that was desired.

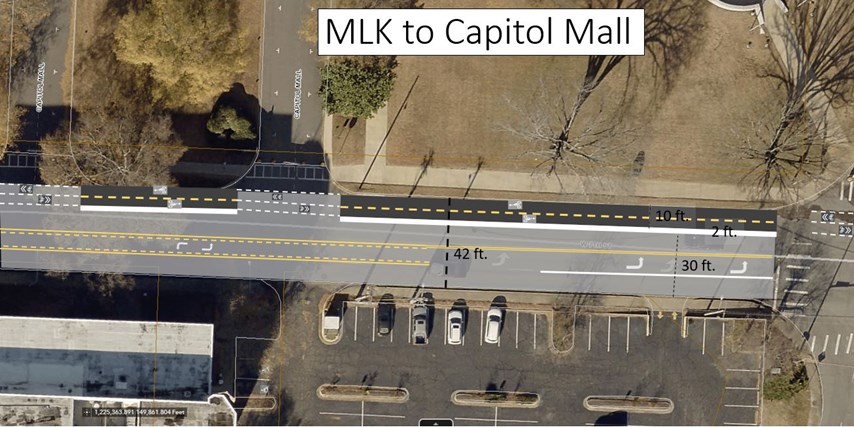

Figure 7.  Design concept of cycletrack from MLK to Capitol Mall.

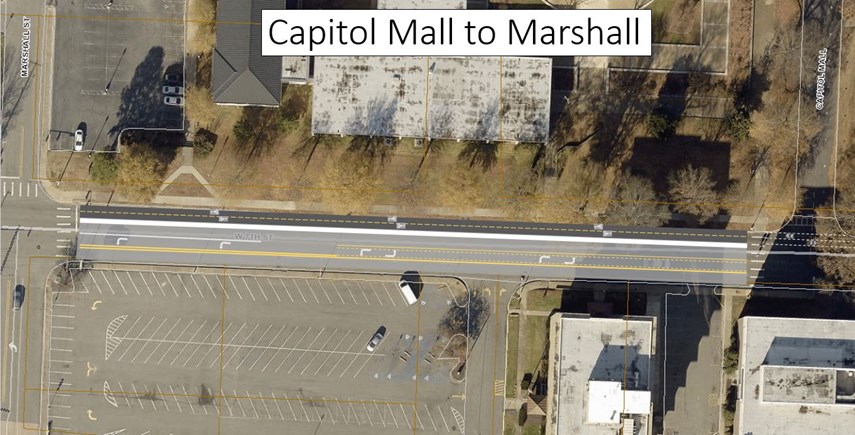

Figure 8.  Design concept of cycletrack from Capitol Mall to Marshall.
